Odds Ratio#
Odds ratio measures how strongly two binary variables are associated with each other.

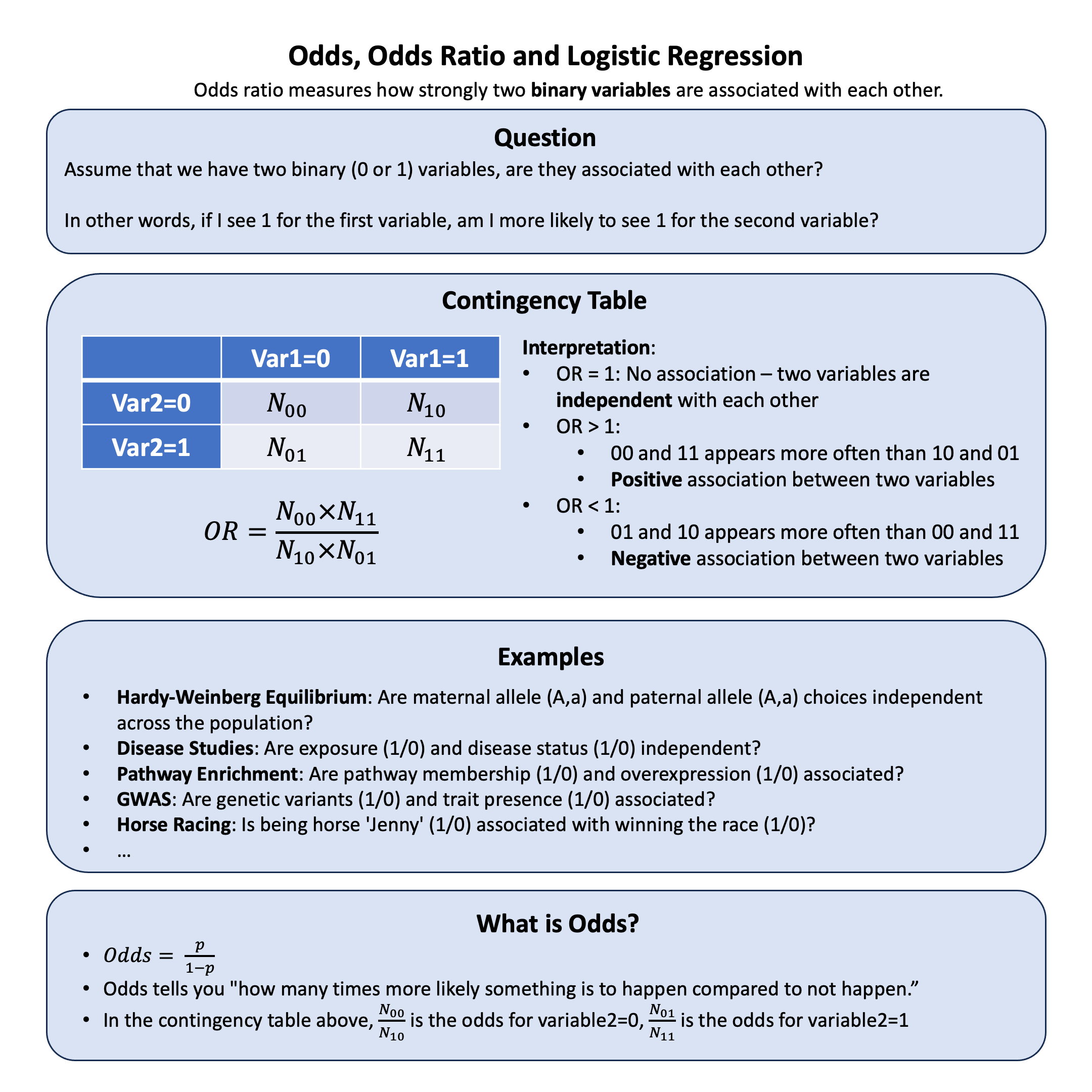

Graphical Summary#
Key Formula#
When we have two binary variables (each can take values 0 or 1), we often want to measure how strongly they are associated with each other.
To organize and analyze the relationship between these two binary variables, we create a 2×2 contingency table that shows all possible combinations:
Variable 2=0 |
Variable 2=1 |
|
|---|---|---|
Variable 1=0 |
\(N_{00}\) |
\(N_{10}\) |
Variable 1=1 |
\(N_{01}\) |
\(N_{11}\) |
(\(N_{ij}\) = count of samples with Variable 1=\(i\) and Variable 2=\(j\))
The odds is how much more likely something is to happen compared to not happen:
For example, the odds of Variable 2=1 given Variable 1=0 is \(\frac{N_{10}}{N_{00}}\), and the odds of Variable 2=1 given Variable 1=1 is \(\frac{N_{11}}{N_{01}}\).
The Odds Ratio (OR) compares these two odds to quantify the association between the variables:
Technical Details#
Logistic Regression#
Logistic regression is used when we want to predict a binary outcome (yes/no, diseased/healthy, success/failure).
Problem: Regular linear regression can give predictions outside 0-1 range, which doesn’t make sense for probabilities.
Solution: Instead of modeling probability directly, we model the log-odds (logit):
Why this works:
Log-odds can be any number from \(-\infty\) to \(\infty\)
We can use linear regression on log-odds
Then transform back to get probabilities between 0 and 1
Key insight: The coefficient \(\beta\) tells us how much the log-odds change for each unit increase in \(X\). Since \(\text{OR} = e^{\beta}\), we get the odds ratio directly from the regression.
Chi-Square Test#
The chi-square test helps us determine if the odds ratio we calculated is statistically significant (not due to random chance).
Null hypothesis: \(H_0\): The two variables are independent (OR = 1)
Test statistic:
Simple interpretation:
Large \(\chi^2\) value (\(p-\text{value} < 0.05\)) -> Strong evidence against independence -> Variables are associated (Reject null hypothesis)
Small \(\chi^2\) value -> Weak evidence -> Variables might be independent
Connection to OR: If chi-square test is significant, then our calculated odds ratio is likely a real association, not just random variation.
Example#
Example 1 – HWE#
We know that under Hardy-Weinberg equilibrium, maternal and paternal alleles are chosen independently - just like our binomial expansion assumes. But how can we actually test this independence in real data? And what does it look like when this independence breaks down?
Let’s use data from E.B. Ford’s classic study on the scarlet tiger moth to see how we can set up a \(2\times 2\) table and use odds ratios to test for HWE.
Here’s the original data from E.B. Ford (1971) on the scarlet tiger moth:
Phenotype |
White-spotted (AA) |
Intermediate (Aa) |
Little spotting (aa) |
Total |
|---|---|---|---|---|
Number |
1469 |
138 |
5 |
1612 |
# Clear the environment
rm(list = ls())
# Data from E. B. Ford (1971) on the scarlet tiger moth
N_AA <- 1469 # White-spotted
N_Aa <- 138 # Intermediate
N_aa <- 5 # Little spotting
N_total <- N_AA + N_Aa + N_aa
# Calculate observed allele frequencies
N_A <- (2 * N_AA + N_Aa)
N_a <- (2 * N_aa + N_Aa)
f_A <- N_A / (2 * N_total) # Frequency of A allele
f_a <- N_a / (2 * N_total) # Frequency of a allele
cat("Allele frequencies:\n")
cat("f_A =", round(f_A, 4), "\n")
cat("f_a =", round(f_a, 4), "\n")
Allele frequencies:
f_A = 0.9541
f_a = 0.0459
Now let’s set up our \(2\times 2\) contingency table to test independence of maternal and paternal alleles:
# Set up 2x2 contingency table for independence test
# For each Aa individual, we split equally between maternal A/paternal a and maternal a/paternal A
maternal_A_paternal_A <- N_AA # AA genotypes
maternal_A_paternal_a <- N_Aa / 2 # Half of Aa genotypes
maternal_a_paternal_A <- N_Aa / 2 # Half of Aa genotypes
maternal_a_paternal_a <- N_aa # aa genotypes
# Create the 2x2 table
contingency_table <- matrix(c(maternal_A_paternal_A, maternal_A_paternal_a,
maternal_a_paternal_A, maternal_a_paternal_a),
nrow = 2, byrow = TRUE)
rownames(contingency_table) <- c("Maternal A", "Maternal a")
colnames(contingency_table) <- c("Paternal A", "Paternal a")
contingency_table
| Paternal A | Paternal a | |
|---|---|---|
| Maternal A | 1469 | 69 |
| Maternal a | 69 | 5 |
Then we can calculate the odds ratio:
# Calculate odds ratio
a <- contingency_table[1,1] # Maternal A, Paternal A
b <- contingency_table[1,2] # Maternal A, Paternal a
c <- contingency_table[2,1] # Maternal a, Paternal A
d <- contingency_table[2,2] # Maternal a, Paternal a
odds_ratio <- (a * d) / (b * c)
cat("\nOdds Ratio =", round(odds_ratio, 4), "\n")
Odds Ratio = 1.5427
The odds ratio tells us the magnitude of deviation from independence, but doesn’t tell us if it’s statistically significant. Under HWE, the odds ratio should equal 1.0, meaning maternal and paternal allele choices are independent.
To determine significance, we need a chi-square test that accounts for sample size and expected sampling variability. We can do this in two equivalent ways:
Analysis 1: Chi-square Test on a \(2\times 2\) Table#
# Test independence using chi-square test on the 2x2 table
chi_sq_independence <- chisq.test(contingency_table, correct = FALSE)
print(chi_sq_independence)
Warning message in chisq.test(contingency_table, correct = FALSE):
“Chi-squared approximation may be incorrect”
Pearson's Chi-squared test
data: contingency_table
X-squared = 0.83095, df = 1, p-value = 0.362
Analysis 2: Traditional HWE chi-square Test on Genotype Counts#
# Calculate expected genotype counts under HWE
N_exp_AA <- f_A^2 * N_total
N_exp_Aa <- 2 * f_A * f_a * N_total
N_exp_aa <- f_a^2 * N_total
# Create comparison table
genotypes <- c("AA", "Aa", "aa")
N_observed <- c(N_AA, N_Aa, N_aa)
N_expected <- c(N_exp_AA, N_exp_Aa, N_exp_aa)
results <- data.frame(Genotype = genotypes,
Observed = N_observed,
Expected = round(N_expected, 1),
Difference = round(N_observed - N_expected, 1))
# Perform chi-square test
chi_sq <- sum((N_observed - N_expected)^2 / N_expected)
degrees_freedom <- 1 # number of genotypes - number of independent alleles = 3 - 2 = 1
p_value <- 1 - pchisq(chi_sq, degrees_freedom)
cat("\nTraditional HWE chi-square test results:\n")
cat("Chi-square statistic =", round(chi_sq, 4), "\n")
cat("Degrees of freedom =", degrees_freedom, "\n")
cat("p-value =", format(p_value, scientific = TRUE), "\n")
Traditional HWE chi-square test results:
Chi-square statistic = 0.8309
Degrees of freedom = 1
p-value = 3.619985e-01
Both methods give the same result because they’re testing the same hypothesis - independence of maternal and paternal alleles.
Exercise: Test HWE with Modified Data
Now that you’ve seen how to test HWE when it holds, try modifying the genotype counts to see what happens when independence breaks down. For example, what if we had 1469 AA, 500 Aa, and 0 aa individuals? Or try 1000 AA, 50 Aa, and 200 aa? Change the values of N_AA, N_Aa, and N_aa in the code above and rerun the analysis. Pay attention to how the odds ratio changes from 1.0 and how the p-value reflects the statistical significance of these deviations. This will help you understand what different types of HWE violations look like in practice - whether it’s excess heterozygotes, deficiency of heterozygotes, or other patterns that suggest non-random mating or population structure.
Example 2 – GWAS#
In genetic association studies, we often want to measure how strongly a genetic variant is associated with disease status. There are two common approaches to calculate odds ratios: using contingency tables with the formula \(OR = \frac{N_{00} \times N_{11}}{N_{01} \times N_{10}}\), or using logistic regression where \(OR = e^{\beta}\). This example demonstrates both methods using genetic data from 5 individuals with 3 variants each, and shows that both approaches yield identical results when applied to the same binary association.
# Clear the environment
rm(list = ls())
# Define genotypes for 5 individuals at 3 variants
# These represent actual alleles at each position
# For example, Individual 1 has genotypes: CC, CT, AT
genotypes <- c(
"CC", "CT", "AT", # Individual 1
"TT", "TT", "AA", # Individual 2
"CT", "CT", "AA", # Individual 3
"CC", "TT", "AA", # Individual 4
"CC", "CC", "TT" # Individual 5
)
# Reshape into a matrix
N = 5
M = 3
geno_matrix <- matrix(genotypes, nrow = N, ncol = M, byrow = TRUE)
rownames(geno_matrix) <- paste("Individual", 1:N)
colnames(geno_matrix) <- paste("Variant", 1:M)
alt_alleles <- c("T", "C", "T")
# Convert to dominant model: 0 = no alt alleles, 1 = one or more alt alleles
X_dominant <- matrix(0, nrow = N, ncol = M)
rownames(X_dominant) <- rownames(geno_matrix)
colnames(X_dominant) <- colnames(geno_matrix)
for (i in 1:N) {
for (j in 1:M) {
alleles <- strsplit(geno_matrix[i,j], "")[[1]]
alt_count <- sum(alleles == alt_alleles[j])
X_dominant[i,j] <- ifelse(alt_count > 0, 1, 0) # dominant model
}
}
# assign observed disease status for the 5 individuals (1: case, 0: control)
Y <- c(0, 1, 0, 1, 0)
# Create a data frame for analysis
data <- data.frame(
Y = Y,
variant1 = X_dominant[,1],
variant2 = X_dominant[,2],
variant3 = X_dominant[,3]
)
data
| Y | variant1 | variant2 | variant3 | |
|---|---|---|---|---|
| <dbl> | <dbl> | <dbl> | <dbl> | |
| Individual 1 | 0 | 0 | 1 | 1 |
| Individual 2 | 1 | 1 | 0 | 0 |
| Individual 3 | 0 | 1 | 1 | 0 |
| Individual 4 | 1 | 0 | 0 | 0 |
| Individual 5 | 0 | 0 | 1 | 1 |
Analysis 1: Chi-square Test on a \(2\times 2\) Table#
For this example, let’s focus on Variant 1 and create a contingency table.
# Create contingency table for variant1 (already binary)
contingency_table <- table(data$variant1, data$Y)
contingency_table <- table(data$variant1, data$Y)
dimnames(contingency_table) <- list(
Variant_1 = c("0", "1"),
Disease = c("Control", "Case")
)
contingency_table
Disease
Variant_1 Control Case
0 2 1
1 1 1
# Calculate odds ratio
a <- contingency_table[1,1] # Maternal A, Paternal A
b <- contingency_table[1,2] # Maternal A, Paternal a
c <- contingency_table[2,1] # Maternal a, Paternal A
d <- contingency_table[2,2] # Maternal a, Paternal a
odds_ratio <- (a * d) / (b * c)
cat("\nOdds Ratio =", round(odds_ratio, 4), "\n")
Odds Ratio = 2
# Test independence using chi-square test on the 2x2 table
chi_sq_independence <- chisq.test(contingency_table, correct = FALSE)
print(chi_sq_independence)
Warning message in chisq.test(contingency_table, correct = FALSE):
“Chi-squared approximation may be incorrect”
Pearson's Chi-squared test
data: contingency_table
X-squared = 0.13889, df = 1, p-value = 0.7094
Analysis 2: Logistic Regression#
# Run logistic regression
model <- glm(Y ~ variant1, data = data, family = binomial)
summary(model)
Call:
glm(formula = Y ~ variant1, family = binomial, data = data)
Coefficients:
Estimate Std. Error z value Pr(>|z|)
(Intercept) -0.6931 1.2247 -0.566 0.571
variant1 0.6931 1.8708 0.371 0.711
(Dispersion parameter for binomial family taken to be 1)
Null deviance: 6.7301 on 4 degrees of freedom
Residual deviance: 6.5917 on 3 degrees of freedom
AIC: 10.592
Number of Fisher Scoring iterations: 4
We check the \(\hat{\beta}\) and the corresponding OR:
# Extract coefficient (beta) for variant1
beta <- coef(model)["variant1"]
paste("Beta coefficient:", beta)
# Calculate odds ratio from beta
OR_logistic <- exp(beta)
paste("Odds Ratio from logistic regression:", OR_logistic)
Both methods should give identical odds ratios, demonstrating that:
The contingency table formula \(OR = \frac{N_{00} \times N_{11}}{N_{01} \times N_{10}}\)
The logistic regression formula \(OR = e^{\beta}\)
are mathematically equivalent ways of measuring the same association between binary variables.
Supplementary#
Logistic Regression: From Binary to Continuous Variables#

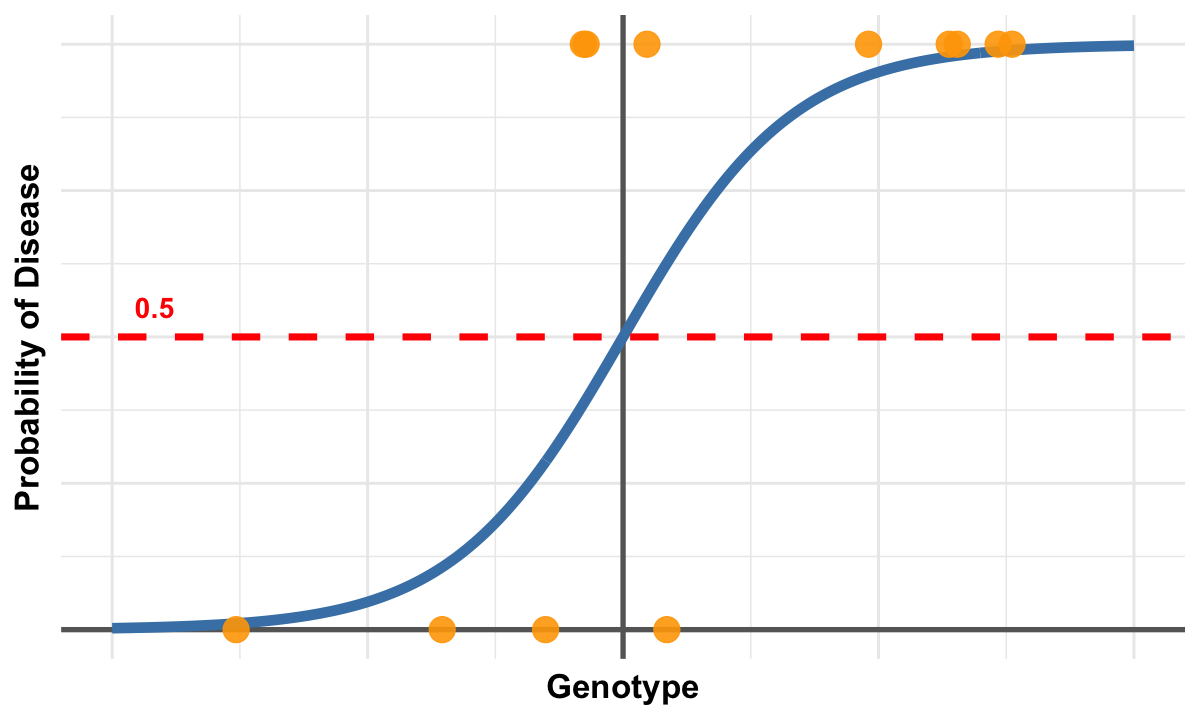

This figure illustrates how logistic regression extends from binary variables (as used in contingency tables) to continuous predictors. The smooth blue curve represents the logistic function, which models how disease probability changes as a continuous genotype variable increases. Unlike linear regression, the S-shaped logistic curve naturally constrains predictions between 0 and 1, making it ideal for binary outcomes.
The orange points represent observed data where individuals either have disease (\(Y=1\)) or not (\(Y=0\)), while their x-position shows their genotype value. The red dashed line at probability 0.5 serves as a decision threshold.
This visualization shows how we can move beyond simple \(2 \times 2\) comparisons to model nuanced, gradual relationships between any continuous variable and a binary outcome, while the odds ratio interpretation remains the same.
library(ggplot2)
options(repr.plot.width = 10, repr.plot.height = 6)
# Define logistic function
logistic <- function(x, beta0 = 0, beta1 = 1) {
1 / (1 + exp(-(beta0 + beta1 * x)))
}
# Generate logistic curve
x_vals <- seq(-6, 6, length.out = 300)
y_vals <- logistic(x_vals)
curve_data <- data.frame(x = x_vals, y = y_vals)
# Simulate fewer binary data points
set.seed(123)
x_sim <- runif(12, min = -5, max = 5)
prob <- logistic(x_sim)
y_sim <- rbinom(length(x_sim), size = 1, prob = prob)
points_data <- data.frame(x = x_sim, y = y_sim)
# Plot
p <- ggplot() +
geom_hline(yintercept = 0, color = "gray40", linewidth = 1.5) +
geom_vline(xintercept = 0, color = "gray40", linewidth = 1.5) +
geom_line(data = curve_data, aes(x = x, y = y),
color = "steelblue", linewidth = 3) +
geom_point(data = points_data, aes(x = x, y = y),
color = "orange", size = 7, alpha = 0.9) +
geom_hline(yintercept = 0.5, linetype = "dashed",
color = "red", linewidth = 2) +
annotate("text", x = -5.5, y = 0.55, label = "0.5",
color = "red", size = 6, fontface = "bold") +
labs(x = "Genotype", y = "Probability of Disease") +
theme_minimal(base_size = 18) +
theme(
plot.title = element_blank(),
axis.title = element_text(size = 20, face = "bold"),
axis.text = element_blank(),
axis.ticks = element_blank()
)
print(p)
ggsave("./figures/odds_ratio.png", plot = p,
width = 10, height = 6,
bg = "transparent",
dpi = 300)
